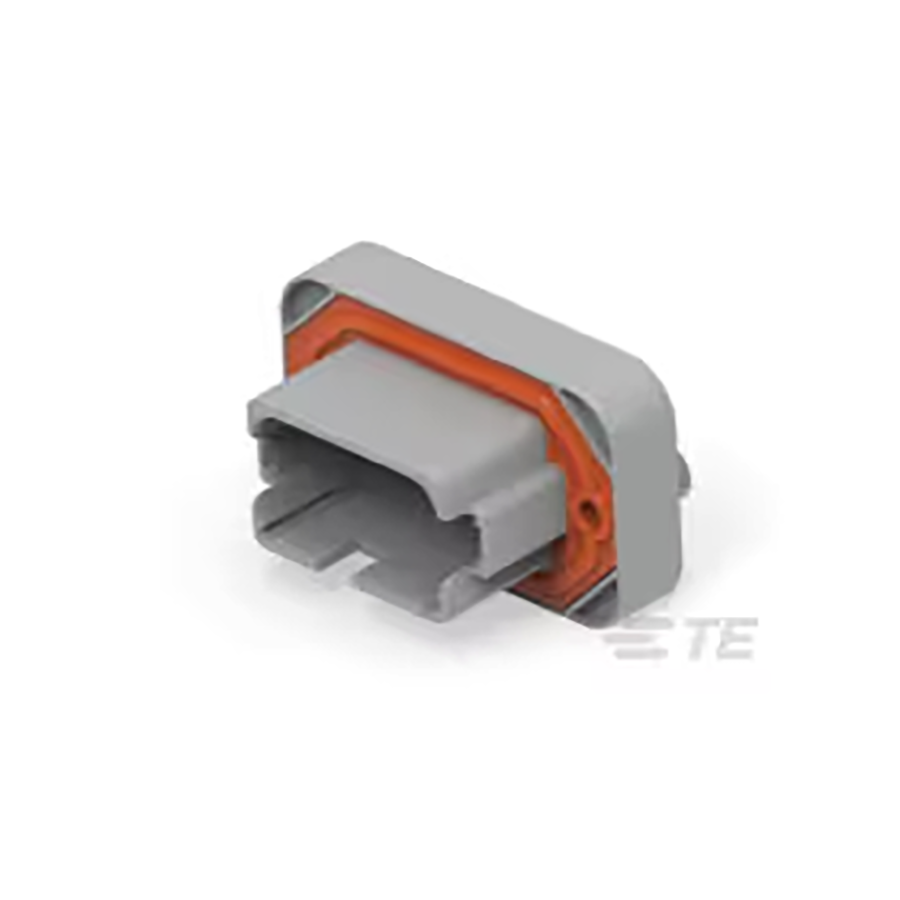

DT15-12PA-B016
Manufacturer:
TE Connectivity
Mfr.Part #:
DT15-12PA-B016
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:12 Pitch:4.445 mm
| Parameter | Value |
|---|---|
| Length | 59.21 mm |
| Width | 35.26 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 34.82 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Nickel |
| Pitch | 4.445 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Grey |
| Gender | Receptacle (Female) |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 9.1186 mm |
| Housing Material | Thermoplastic |
| Housing Color | Gray |
| Polarized | No |
| Hybrid Connector | No |
| Serviceable | No |
| Termination Post Length | 3.1 mm |
Stock: 111
Distributors
pcbx
pcbxUnit Price$9.60000
Ext.Price$9.60000
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.60000 | $9.60000 |
| 10 | $8.16030 | $81.60300 |
| 25 | $7.64136 | $191.03400 |
| 50 | $7.27801 | $363.90050 |
| 100 | $6.92750 | $692.75000 |
| 300 | $6.54773 | $1964.31900 |
| 500 | $6.18883 | $3094.41500 |
| 1000 | $5.89474 | $5894.74000 |
